Small-size ECR Ion Shower System For etching and other various purposes.

​측정,분석장치

반도체 장치

실험실 설비/재료

Outline

●Stable and high-density reactive ion beams, including oxygen, are available for a long-interval.

●As the EIS-200ER provides a high electron current density even at low acceleration voltages, procedures such as etching without giving serious damage to the substrate, and cleaning of the specimen surface, are possible.

●Equipped with a neutralization electrode, it allows for etching of insulators.

●Thin film deposition of metals with high melting points is possible.

●The ion gun of the EIS-200ER, which can be attached to various vacuum systems, is separately available.

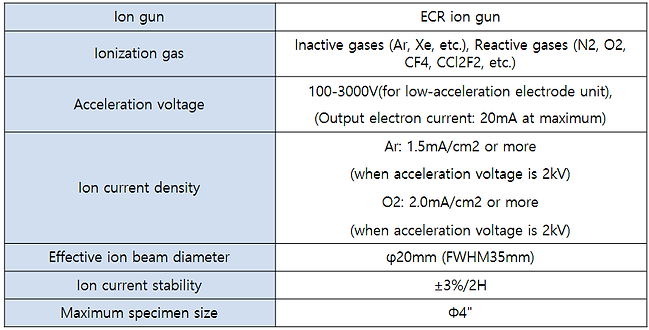

주요사양
